3D Object or Spinset image capture Turntable

This is a complete computer controlled  3D Object or Spinset image capture Turntable system.

The I2o turntable is be controlled with the system supplied turntable software that controls both the turntable and camera to automate the production of 360° view images.

The software is PC based and requires a USB port, Windows XP, Vista and 7 operating systems are supported.

 software has been developed  to make the production of 'Object Images' as simple and straightforward as possible.

The software fully syncronises both the turntable and camera rotation and shooting.

- Turntable acceleration, slew rate and deceleration can be finely controlled.
- Frames can be viewed as they are shot.
- Frames can be batch edited for sharpening, brightness and contrast.
- Automated Background Removal capability.
- Turntable rotation can be controlled from PC from constant speed to sub-degree steps.
- Fully automated camera operation of shooting of frames, from 6 to 72 per rotation.
- Standard slew rate 3rpm, manual default slew rate 1.5rpm rates are configurable and adjustable.
- Precise positioning and reshooting of specific frames feature.
- Immediate export option as SWF, ready for web very fast, - High Res Server support built in.
- Image sets can be imported into other 3D Obj format imaging software as required.
- flash format view is enabled directly from within the software
- Compatible with Adobe Scene 7 and other 3d imaging specialised software.

A valid licence is required for use of this software, please contact us if you need an evaluation licence.

We can assist with specifying a complete system or components of camera equipment, lighting, backdrops and PCs if required, systems can be studio based or portable for use on location.

Designed interface for DSLR cameras : Nikon, Canon (also compatible with any of the Canon Powershot range up to the G10)

Height: 130-150 mm on adjustable levelling feet.

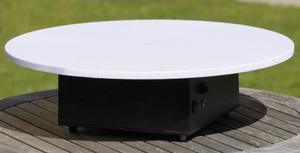

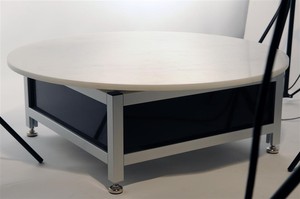

Support surface/max load weight: 50cm diameter/ 15kg or 110cm/100kg. The white disc surface optimised for 3D imaging can also be covered with blue/green materials for alternative cut outs methods.

Universal Power supply 110-240v/12v 60Woutput for 15kg , internal psu in 110cm system both fitted with UK plug standard Euro standard on request.

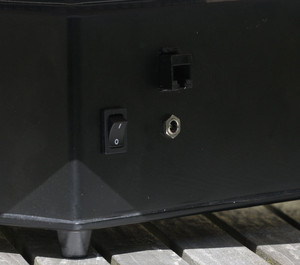

Usb connection is via rj45 connector and adaptor to usb pc connection - system is supplied complete with 5m cable

Unit Weight: 50cm:5kg,  110cm:35kg

fully supported with technical advice, remote support or onsite training - please call for details
